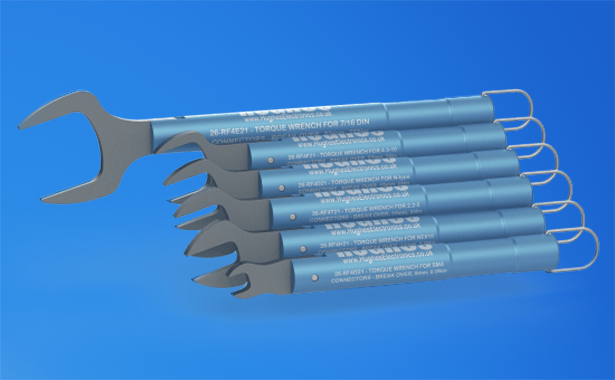

X10 (NEX10™), 4.3-10, 7/16, N-type, 2.2-5 and SMA Torque Wrenches
Precision torque tools for RF connector installation.
Hughes break-over torque wrenches deliver accurate mating forces to RF coaxial connectors, preventing over-tightening and connection damage. The 10° break-over action provides a clear tactile click when the correct torque is reached, ensuring consistent, repeatable installation. Built from durable chrome-moly steel with an anodised aluminium handle and tamper-proof heads, they are available for X10 (NEX10™), 4.3-10, 7/16, N-type, 2.2-5 and SMA connectors.
Features and Benefits
Precise Torqueing
Laboratory-configured torque settings ensure accuracy every time.
Robust Design
Built for continual use with phosphate-coated chromium molybdenum steel.
Tamper-Proof
Internal adjustment is tamper-proof, maintaining calibration integrity.
Break-Over Design
Torque wrench "breaks" at pivot point once correct torque is achieved.
Lightweight & Compact
Blue anodised aluminium handle, ideal for restricted space applications.
Minimises Downtime
Reliable performance reduces tool replacement and maintenance downtime.
Available Models
| Part Number | Description |
|---|---|
| 26-RF4H21 | Torque Wrench for X10 (NEX10™) Connectors - Break Over 11mm 1.5Nm |
| 26-RF4F21 | Torque Wrench for 4.3-10 Connectors - Break Over 22mm 5Nm |
| 26-RF4E21 | Torque Wrench for 7/16 Connectors - Break Over 32mm 25Nm |
| 26-RF4D21 | Torque Wrench for N-type Connectors - Break Over 19mm 5Nm |
| 26-RF4T21 | Torque Wrench for 2.2-5 Connectors - Break Over 16mm 3Nm |
| 26-RF4G21 | Torque Wrench for SMA Connectors - Break Over 8mm 0.9Nm |
Note Other factory configured fixed torque settings and sizes can be supplied by special order.
NEX10™ is a trademark of Huber + Suhner, Radiall, Rosenberger
