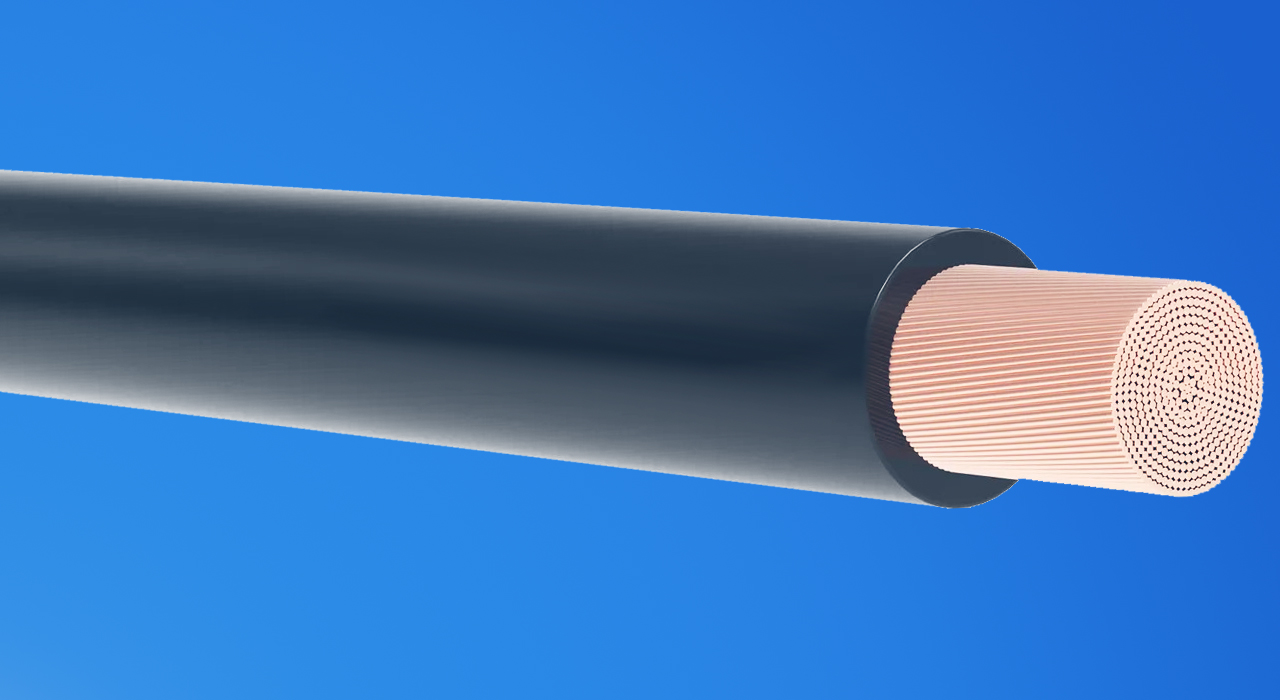

Tri-rated Cable
Multi-standard single-core cable certified for control panel and switchgear applications.
Hughes Tri-rated cable is a flexible single-core conductor certified to BS6231, UL758 and CSA 22.2 for internal panel wiring and switchgear. Flame-retardant PVC insulation supports high temperature operation and provides robust electrical protection, making it ideal for export equipment and multi-standard installations. Available in multiple conductor sizes and colours for circuit identification, Tri-rated cable is suited to control systems, distribution panels and telecom equipment wiring that requires certified, flame-retardant internal cabling.
Download DatasheetFeatures and Benefits
High Temperature Rating
Rated up to 105°C and 600/1000V depending on standard.
Multi-Standard Compliance
Complies with BS6231 Type CK, UL 758, and CSA 22.2.
Flame Retardant
Heat-resistant PVC insulation with flame-retardant properties.
Flexible Construction
Stranded copper conductor for easy routing and installation.
Versatile Applications
Suitable for panel wiring, switchgear, control systems, and equipment.
Superior Durability
Excellent resistance to oil, abrasion, and mechanical stress.
Ordering Information
| Part Number | Jacket Colour | Nominal Cross-Section | Approx. AWG | Current Rating | Voltage Drop mV/A/m |
|---|---|---|---|---|---|
| 21-410053 21-410059 21-41005A | White Blue Green/Yellow | 0.5mm² | 21 | 11 | 46 |
| 21-41013 21-41019 21-4101A | White Blue Green/Yellow | 1mm² | 18 | 17 | 22 |
| 21-4101513 21-410159 21-41015A | White Blue Green/Yellow | 1.5mm² | 16 | 21 | 12 |
| 21-410253 21-410259 21-41025A | White Blue Green/Yellow | 2.5mm² | 14 | 30 | 15 |
| 21-41041 21-41049 21-4104A | White Blue Green/Yellow | 4mm² | 12 | 41 | 9.1 |
| 21-41063 21-41069 21-4106A | White Blue Green/Yellow | 6mm² | 10 | 53 | 5.7 |
| 21-41105 21-41109 21-4110A | White Blue Green/Yellow | 10mm² | 8 | 75 | 3.8 |
| 21-41161 21-41169 21-4116A | White Blue Green/Yellow | 16mm² | 6 | 100 | 2.2 |
| 21-41255 21-41259 21-4125A | White Blue Green/Yellow | 25mm² | 4 | 136 | 1.4 |
| 21-41355 21-41359 21-4135A | White Blue Green/Yellow | 35mm² | 2 | 167 | 1 |
