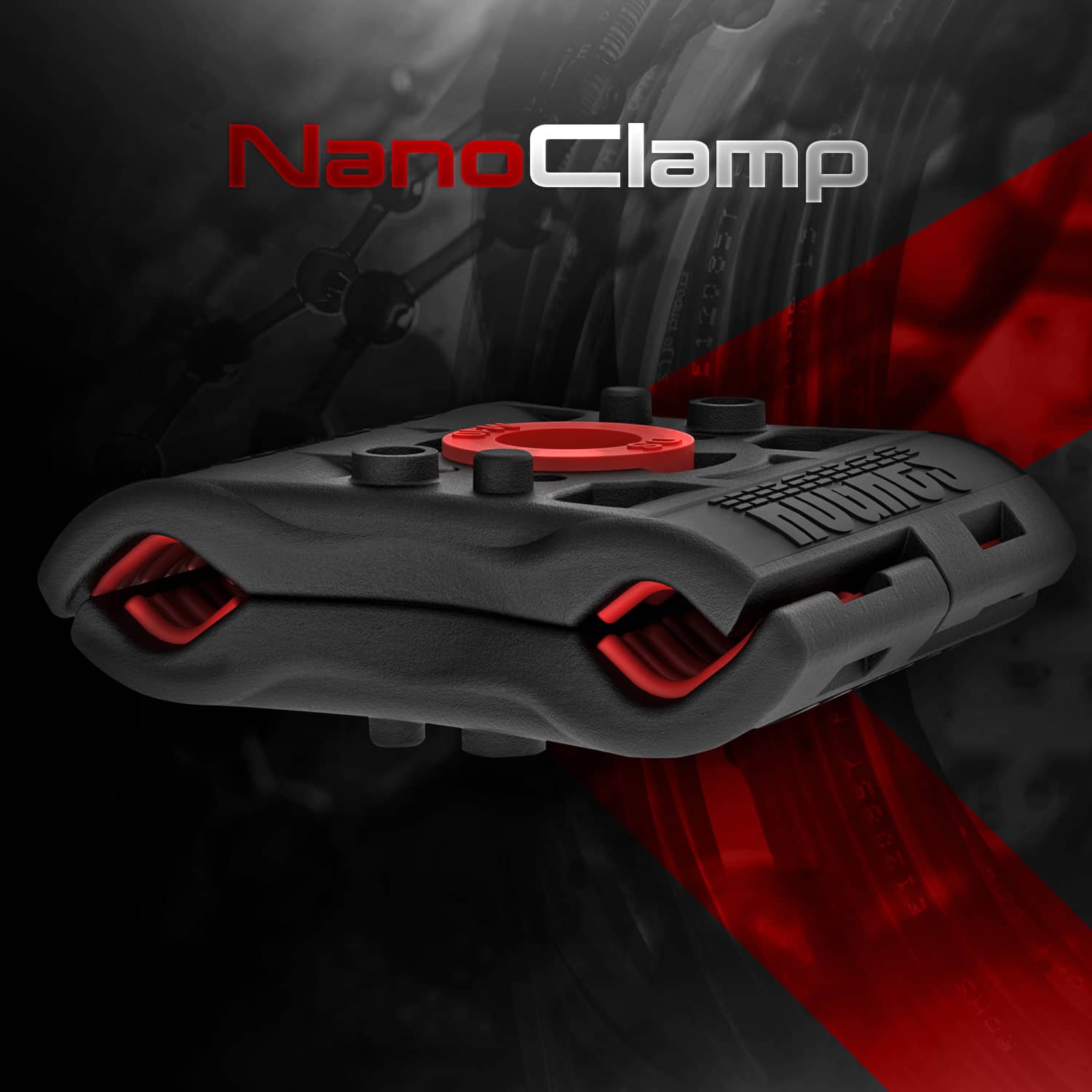

NanoClamp; a cable brace for true professionals.
OneClamp, the worlds most advanced cable brace just had a baby brother. Designed with Fibre cables in mind, NanoClamp (One-Clamp-DS) possesses all the genius of OneClamp but has the exceptional ability to secure cable sizes from 6mm to 16mm.
Just like its sibling, NanoClamp is adjustable, Hughes’ patented de-limiting features deliver the same extraordinary capacity to deftly secure and protect a variety of different cables from damage.
Though designed for fibre, NanoClamp has also become the World’s smallest I/2-inch Coax feeder brace too! NanoClamp safely secures Fibre feeder and jumper cables along with 1/2-inch Low Loss Coax , Data, DC, AISG and many more cables without crushing or deformation, no matter how strong the linear forces applied.
Small is beautiful
At only 60x21x50mm (WxHxD) in size, NanoClamp boldly goes where other clamps cannot, it’s versatility and formidable ability to fit into the tightest of corners makes NanoClamp a ‘must-have’ in every engineer's toolbox, and with Hughes’ patented 'light touch' aperture and option of the same specially engineered cable interface as OneClamp, NanoClamp will reduce vibrations, tremor and movement to keep Fibre safe from micro-bends and Coax from microphonic driven PIM
Add accessories anytime
NanoClamp naturally includes our handy accessory slot on each flange too, accessories or ancillary cables can be added or changed at any time during the life of an installation.
In Passive technology, it’s the details that matter, Hughes pay attention to those details!
Features and Benefits
- Adjustable to fit almost all types of cellular communication cables
- Braces up to 4 cables simultaneously
- Small form factor fits easily into compact spaces
- Optional elastomers reduce microphonic induced PIM and loosening from vibrations and tremor

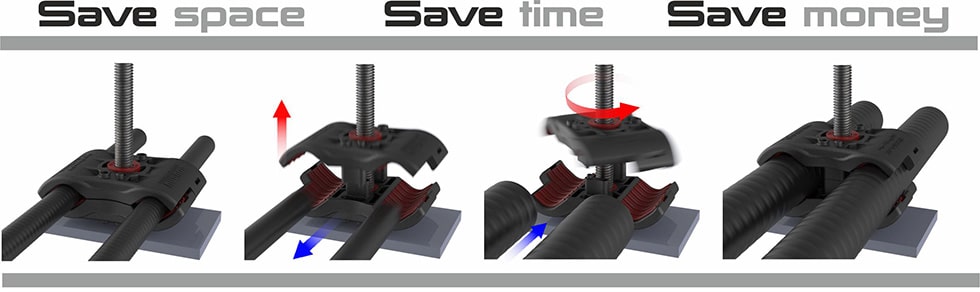

- Retrofits cables or accessories easily... whenever you wish.
| Hughes Part Number | Description |
|---|---|
| 27-CL4S101/0DS1 | OneClamp DS, M10, 6-16mm |
| 27-CL7M211/0DC1 | One Clamp DC, 16mm |
| 27-CL4M211/ADM1 | OneClamp DM, M10, 13-29mm |
-
Specification Cable diameter size 6 – 16mm 1 Number of cables per clamp 2 cables + 2 auxiliary cables Bolt hole size M10 2 Operating temperature -50⁰C to +85⁰C Colour Black Size 60 x 21 x 60mm Weight 65g Packaging 10pcs Materials Main body UV stabilised GF Polypropylene Optional Elastomers UV stabilised Ethylene propylene diene monomer
engineered rubbernote1 - Other sizes available upon request
2 - Other sizes available upon request
-
Download PDF 27-CL4S101/0DS1 - OneClamp DS, M10, 6-16mm
Download PDF OneClamp DS INSTRUCTIONS FOR USE
