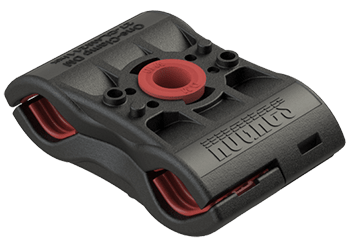

One Clamp is the worlds most advanced cable brace. The innovative double clamp is adjustable, incorporates a pioneering 'light touch' aperture and unique de-limiting features that secures cables of all sizes without crushing or deforming them, no matter how strong the linear forces applied.
Specially engineered materials incorporated in the double clamp's design reduce microphonic induced PIM and loosening from vibrations and tremor.
OneClamp suits almost all cellular communications cables, up to 6 Coaxial, AISG leads, Fibre and Power cables can be clamped safely - all in the space of one clamp, making OneClamp the most cost-effective cable clamp per cable in the UK.
Using the One Clamp daughter clip and/or integrated slot, cables or accessories can be added at any time during the lifespan of an installation without disturbing the original cable stack.
Features and Benefits
OneClamp advanced design:
- Adjusts to fit almost all types of cellular communication cables
- Reduces microphonic induced PIM and loosening from vibrations and tremor
- Retrofits cables or accessories easily, whenever you wish.
- Clamps up to 6 cables simultaneously
| Hughes Part Number | Description |
|---|---|
| 27-CL4M211/ADM1 | OneClamp DM, M10, 13-29mm |
| 27-CL7M211-0DC1 | One Clamp DC, 16mm |
note
other versions and sizes can be supplied by special order
-
Specification Cable diameter size 13 – 29mm 1 Number of cables per clamp 2 cables + 2 auxiliary cables Bolt hole size M10 2 Vibration transmissibility 11.98dB 3 at resonant frequency @25⁰C Vibration damping decay (Lehr's damping) D=1.43% 4 at 0-500Hz @25⁰C Operating temperature -50⁰C to +85⁰C Colour Black with red inserts Size 50 x 82 x 29-47mm Weight 65g Packaging 10pcs Materials Main body UV stabilised GF Polypropylene Elastomers UV stabilised Ethylene propylene diene monomer
engineered rubbernote1 - Other sizes available upon request
2 - Other sizes available upon request3 - 50% reduction compared with market leading clamps
4- 60% improvement compared with market leading clamps - Download PDF 27-CL4M211/ADM1 - OneClamp DM, M10, 13-29mm
Download PDF OneClamp DM INSTRUCTIONS FOR USE
Download PDF 27-CL7M211-0DC1 - One Clamp DC, 16mm
